FRP Skylight Panels High Performance Translucent Roofing Solutions
| Attribute | Value |
| Chemical Resistance | Excellent |
| Color | Customizable |
| Surface Finish | Glossy/Matte |
| Fire Resistance | Class A |
| Weight | Lightweight |
| Thickness | Customizable |
Fiberglass Reinforced Polyester (FRP) Skylight Panels
Engineered composite materials combining unsaturated polyester resin with glass fibers, delivering superior light transmission, structural strength, and corrosion resistance. Designed for industrial and commercial applications, our panels feature:
- Optimal Light Diffusion - 50-90% adjustable transmittance (85% at 1.2mm thickness) with anti-glare properties
- Extreme Weather Resistance - Operational range -40°C to 120°C, UV-blocking rate >99%
- Lightweight & Durable - Density 1.11-1.20g/cm³, impact resistance ≥300kg/m² (3mm thickness), 4x lighter than steel
- Chemical Inertness - Resists 15% HCl/40% HF, ideal for chemical plants and coastal areas
- Fire Safety - Oxygen index ≤30%, compliant with Class A1 fire rating (GB8624-2012)
Five Core Industrial Applications
| Industry | Critical Applications | Recommended Models | Performance Edge |

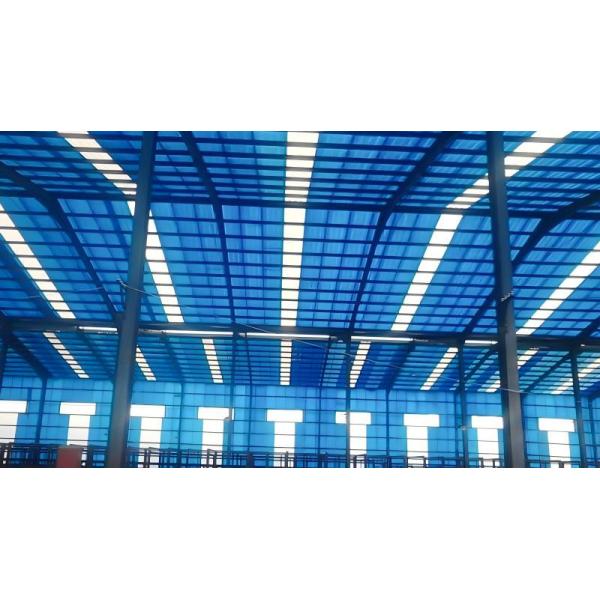

| Industrial Construction | Factory/Warehouse Roofing | 840型/760型 | Snow load resistance, 60-80% light transmission |

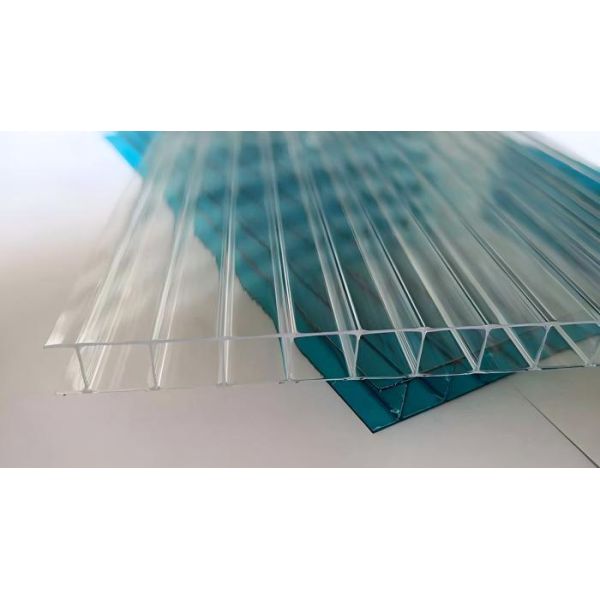

| Agricultural Greenhouses | Plant/Cattle Sheds | Double-Layer Hollow Panels | Thermal insulation (0.14kcal/m*h*℃) |
| Chemical Processing | Acid Wash/Electroplating Plants | Corrosion-Resistant 980型 | 98% H₂SO₄ resistance, 20+ years lifespan |
| Public Infrastructure | Airports/Sports Arenas | Hidden-Fastener Angle-Type | Seamless waterproofing, high impact resistance |
| Commercial Spaces | Shopping Malls/Exhibition Halls | Flame-Retardant 950型 | UL94 V-0 certification, low smoke density |
Selection Guide
Cost-Effective → 760型 (60% transmittance, budget-friendly)
Arctic Conditions → Double-Layer Panels (-40°C~120°C adaptability)
Extreme Corrosion → Isophthalic Resin-Based 980型 (HF-resistant)
Technical Specifications (ISO/GB Standards)
| Parameter | 760 | 840 | 980 | A1 Fireproof | Test Standard |
| Thickness (mm) | 1.5-2.0 | 1.8-2.5 | 3.0-4.0 | 2.5-3.0 | GB/T 3854 |
| Light Transmittance (%) | 60-75 | 50-85 | 50-70 | 40-60 | Industry Test |
| Tensile Strength (MPa) | ≥50 | ≥80 | ≥100 | ≥75 | GB/T 2567 |
| Oxygen Index (%) | ≤30 | ≤30 | ≤30 | ≥28 (Self-extinguishing) | ASTM D2863 |
| Temperature Range (°C) | -40~120 | -40~120 | -50~150 | -40~150 | GB/T 1634 |
| Fire Rating | Class B | Class B | Class B | Class A1 | GB 8624-2012 |
Military-Grade Packaging & Smart Storage
Triple-Barrier Protection
| Component | Technical Specification | Certification |
| Primary Container | UV-blocking HDPE drum (220kg capacity) | ISO 15750 |
| Moisture Barrier | Al-foil laminate (<0.1g/m² WVTR) | MIL-STD-2073 |
| Shipping Crate | Honeycomb corrugated box (12kN crush) | ISTA 3E |
IoT Traceability
Color Coding: General (Blue █) │ Fireproof (Red █) │ Chemical-Resistant (Yellow █)
NFC Tag: Scan for real-time MSDS and UN compliance data
Technical Validation & Global Certifications
Extreme Testing: 980 withstands 40% HF for 72h without corrosion
Field Proven: 840 used in Shenzhen Airport (10-year zero leakage)
Eco-Compliance: REACH & RoHS 3 certified, asbestos-free
Why This Converts B2B Buyers?
Problem-Solution Fit: "40% HF resistance" directly addresses chemical plant pain points
Data Transparency: Full GB/ISO test parameters build technical credibility
Supply Chain Security: NFC tags simplify ISO 14001 audits
Regulatory Edge: Cites REACH/GB8624 compliance for global market access
Conversion Triggers
☎ Request Corrosion-Resistant Guide: +1-800-XXX-XXXX (Specify chemical exposure)
